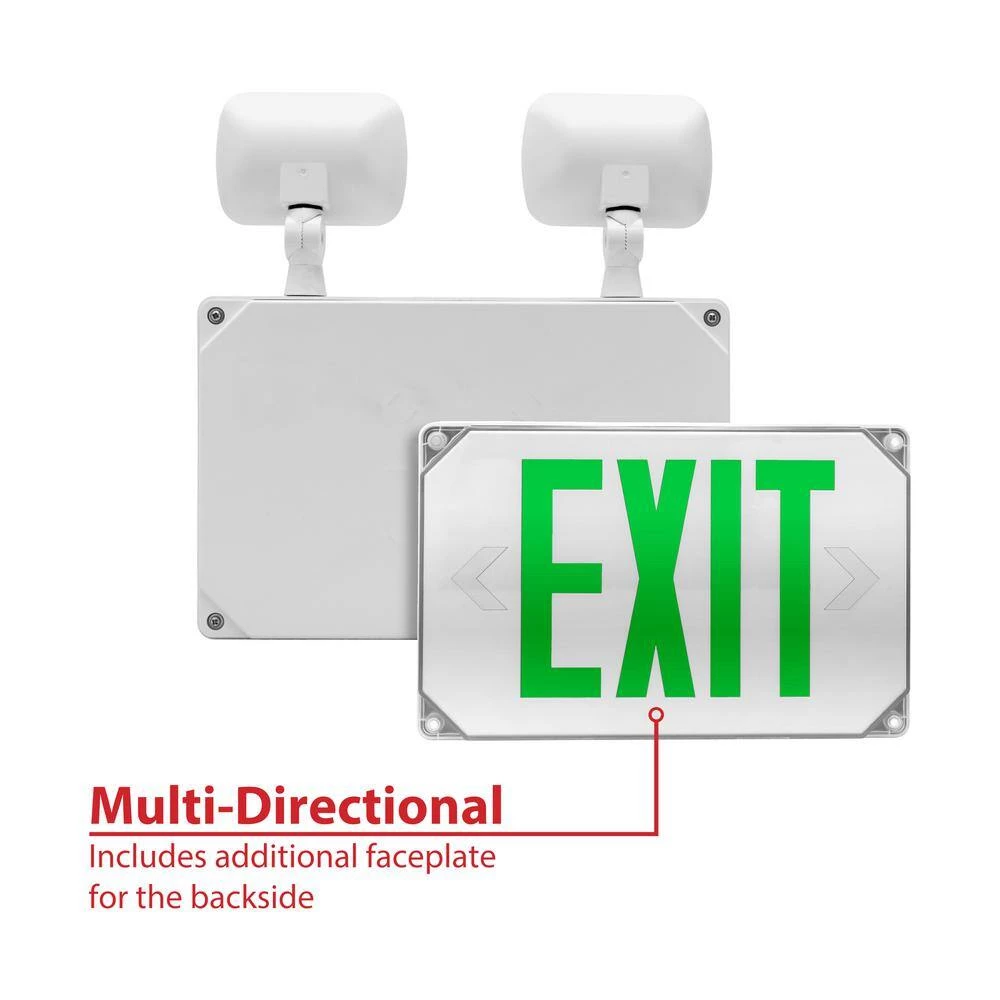

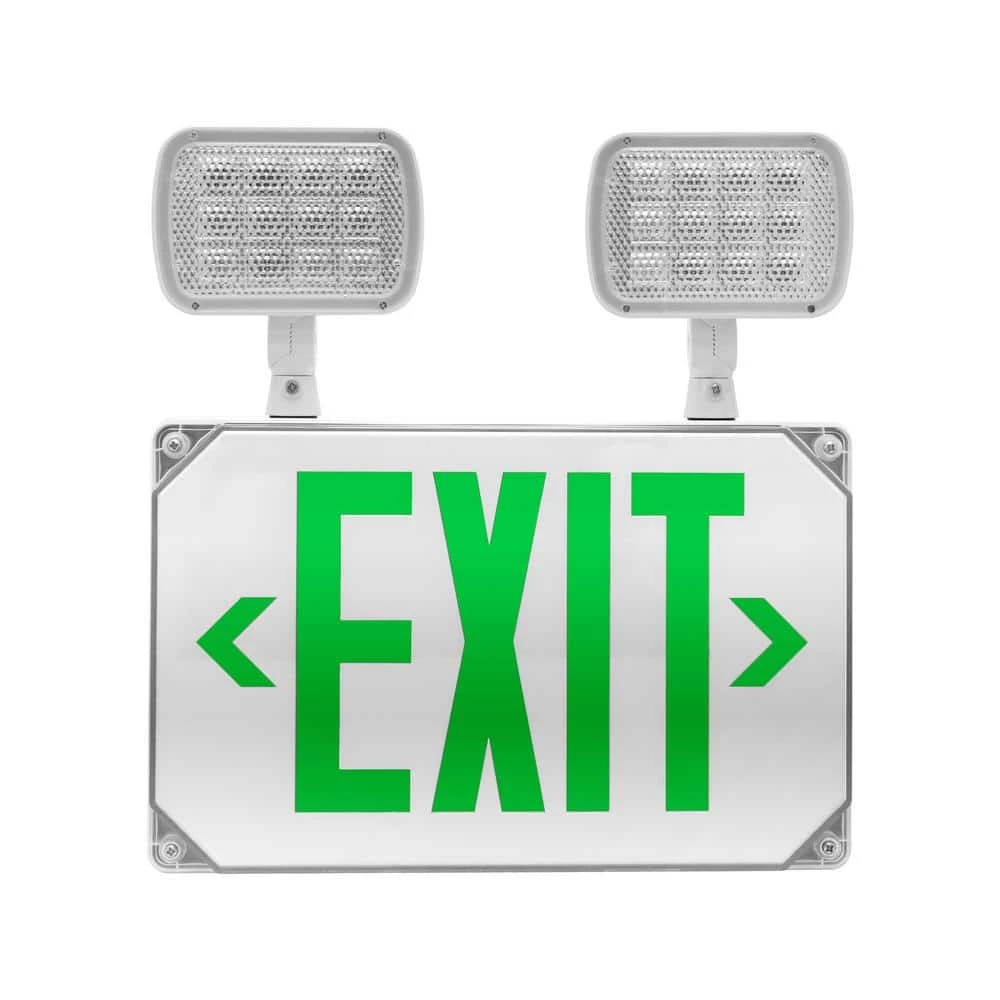

The NICOR ECL5 Series Outdoor LED Exit Sign Combo with Emergency Lighting is code compliant for Outdoor, Wet Location, and Battery Backup requirements. It features a durable corrosion-resistant polycarbonate shield to ensure a wet-location rating. It’s constructed using a new injection-molded ABS thermoplastic housing that’s flammability (UL-94-V-0) rated. The ECL5 includes a Nickel Metal Hydride battery to provide 90-minute emergency run-time that kicks on if the power goes out. The ECL5 uses less than 3.8-Watts of electricity and can be installed in both 120-Volt and 277-Volt applications. The low-profile design keeps the fixture lightweight and easy to install. 2 independent LED light heads (6400K) produce 190 Lumens and are adjustable to 120ยฐ vertical tilt and 360ยฐ rotation. It can be surface mounted using the included mounting bracket with EZ quick-connect. The ECL5 includes an additional faceplate for the backside (if required) and removable chevron arrows. The ECL5 is Wet-Location rated and protected by NICOR’s 1-Year Limited Warranty.
- Suitable for outdoor and wet-location settings

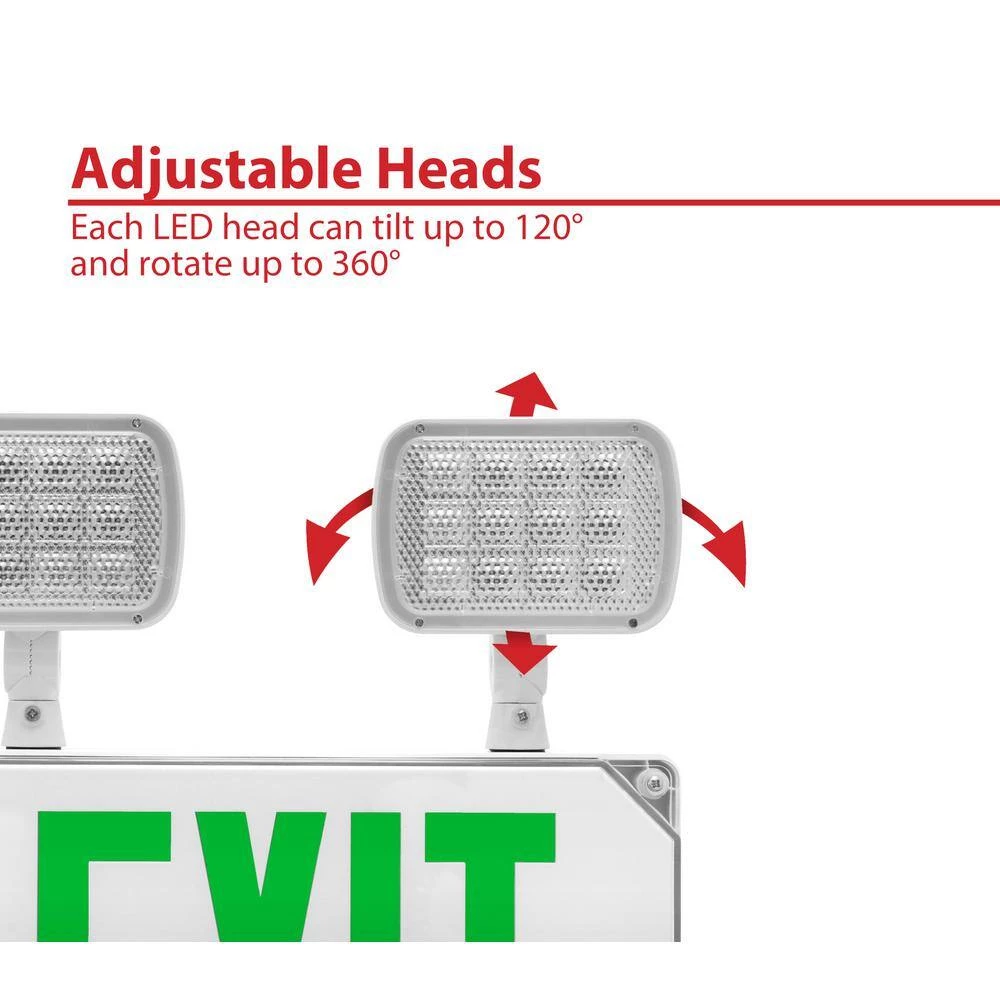

- Adjustable LED heads tilt up to 120ยฐ vertically and rotate up to 360ยฐ
- Sealed polycarbonate shield protects internal components

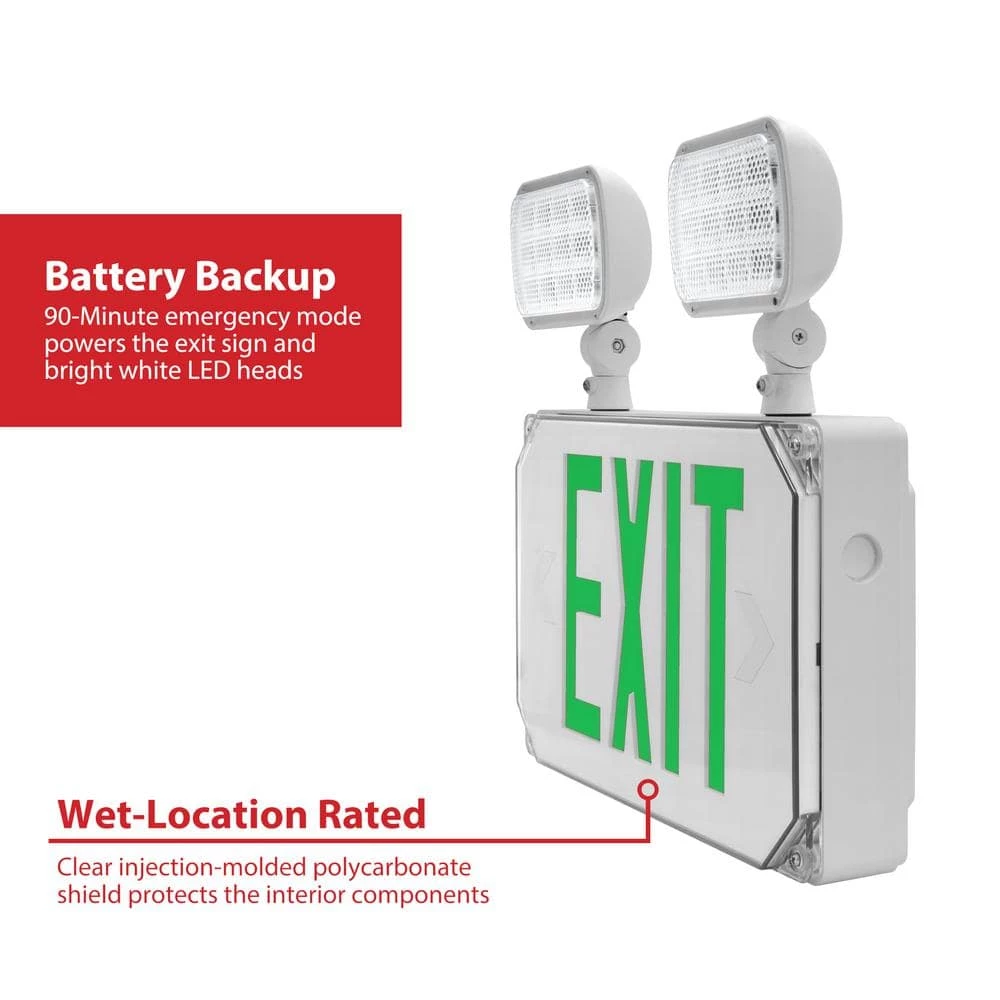

- 90-minute emergency battery backup (UL 924 compliant)
- 3.6-Volt maintenance-free nickel metal hydride 1200mAh battery

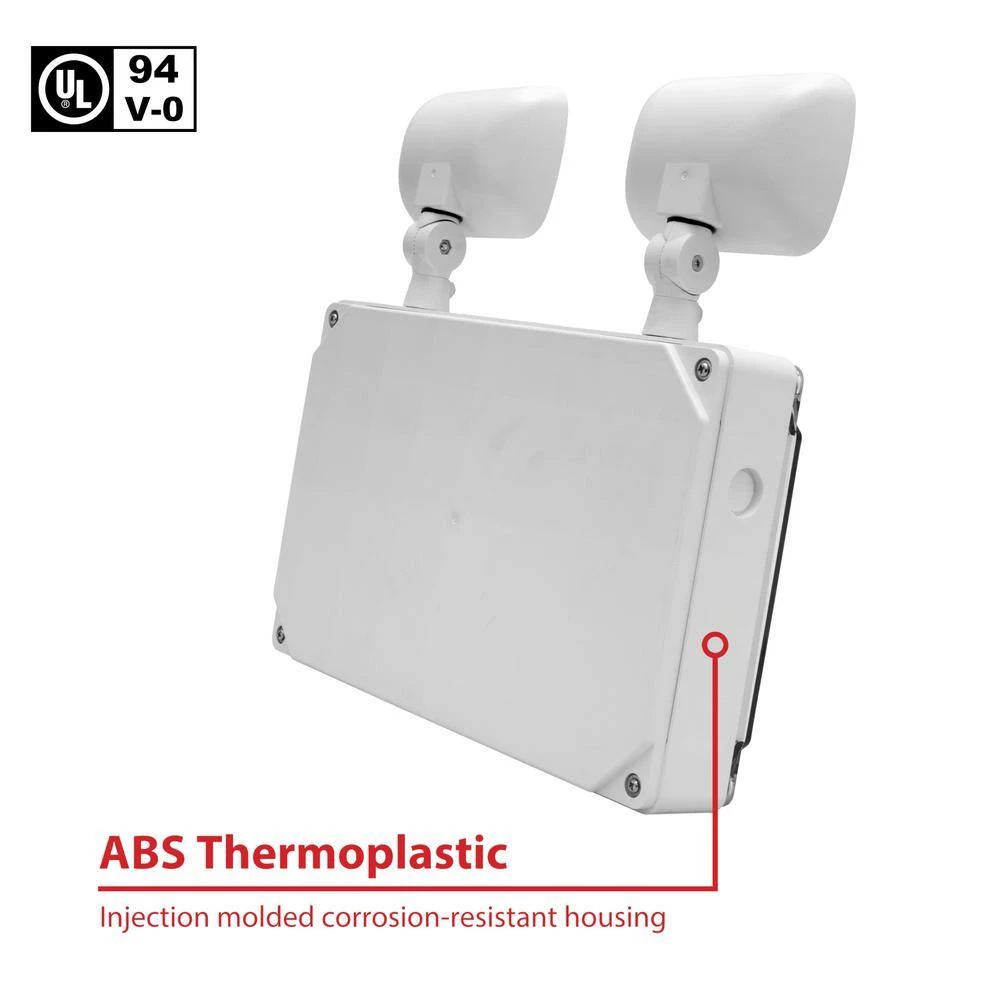

- Injection molded thermoplastic ABS housing (UL94-V-0 rated)
- Dual-voltage for residential and commercial applications (120-Volt/277-Volt)
- Use with NICOR’s emergency/exit product line

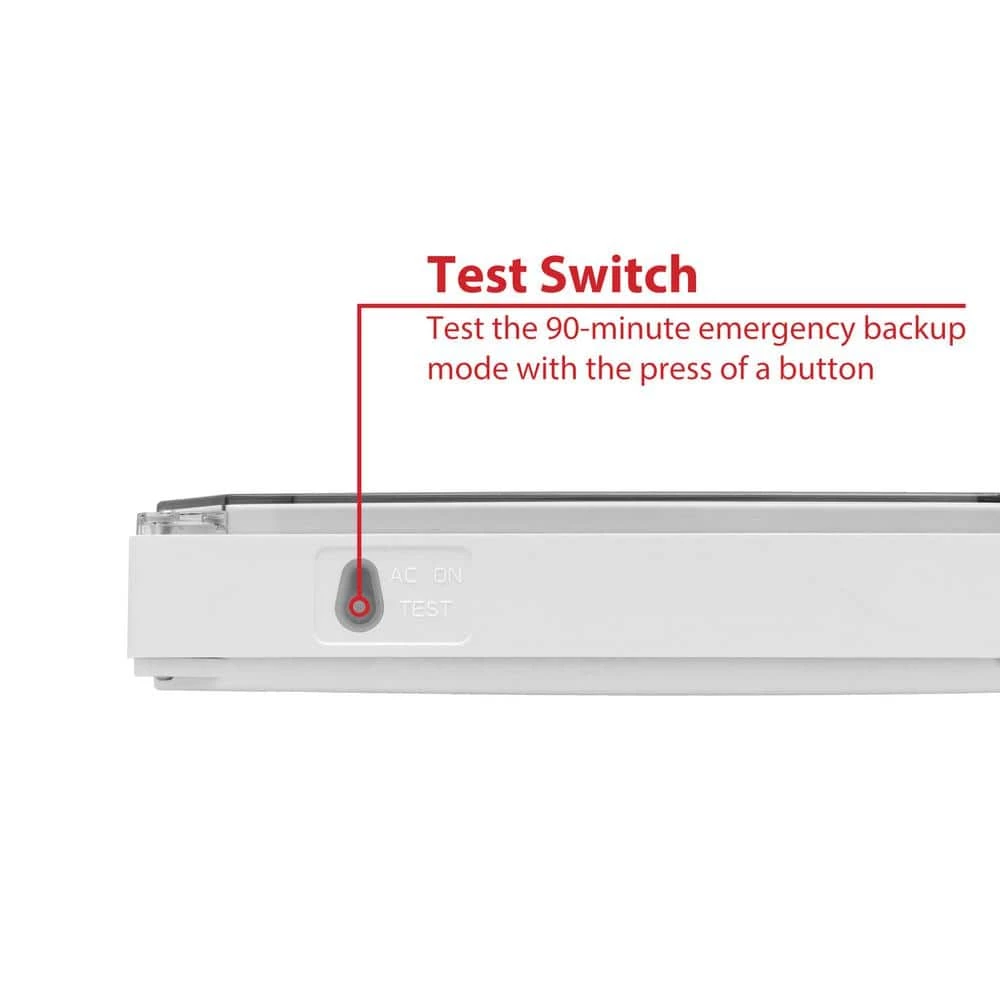

- Features a push-to-test button with indicator light
- Mounting Hardware and installation instructions included
- Available with red or green lettering

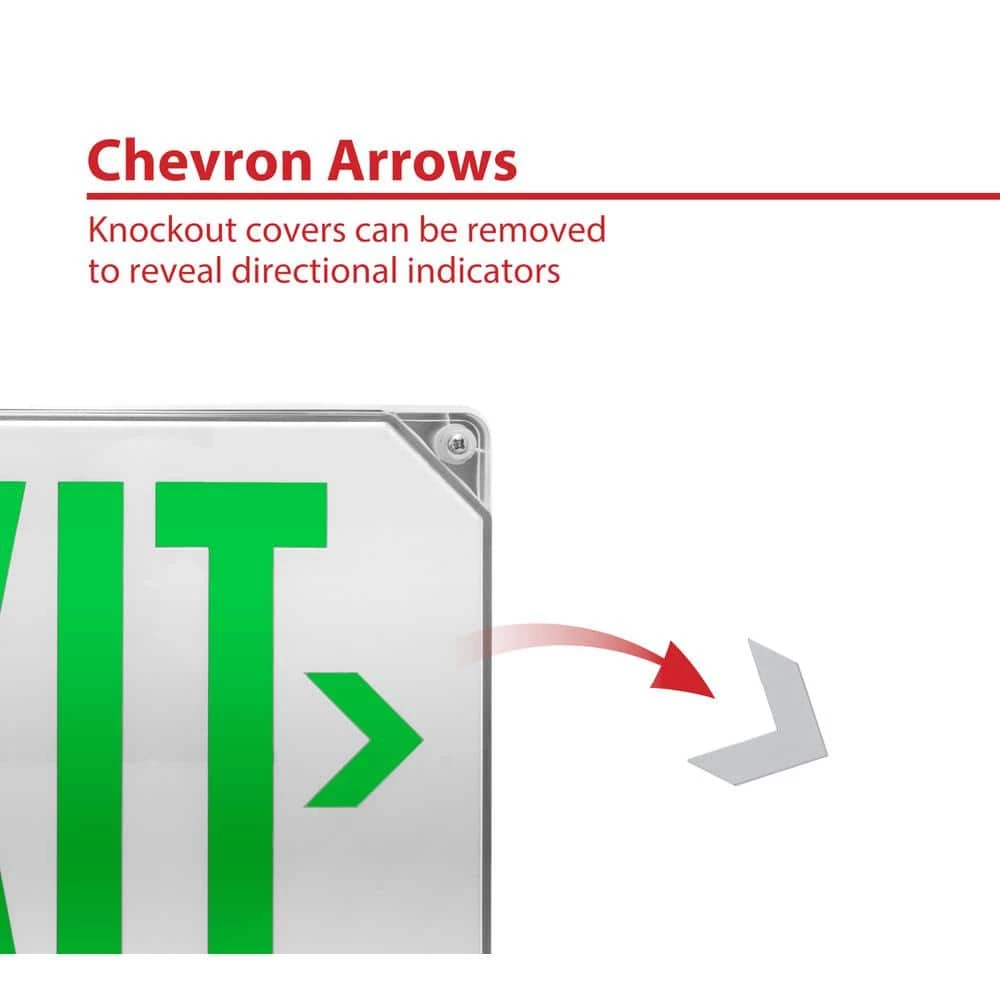

- Removable covers for directional chevron arrows
- Protected by NICOR’s 1-year limited warranty
