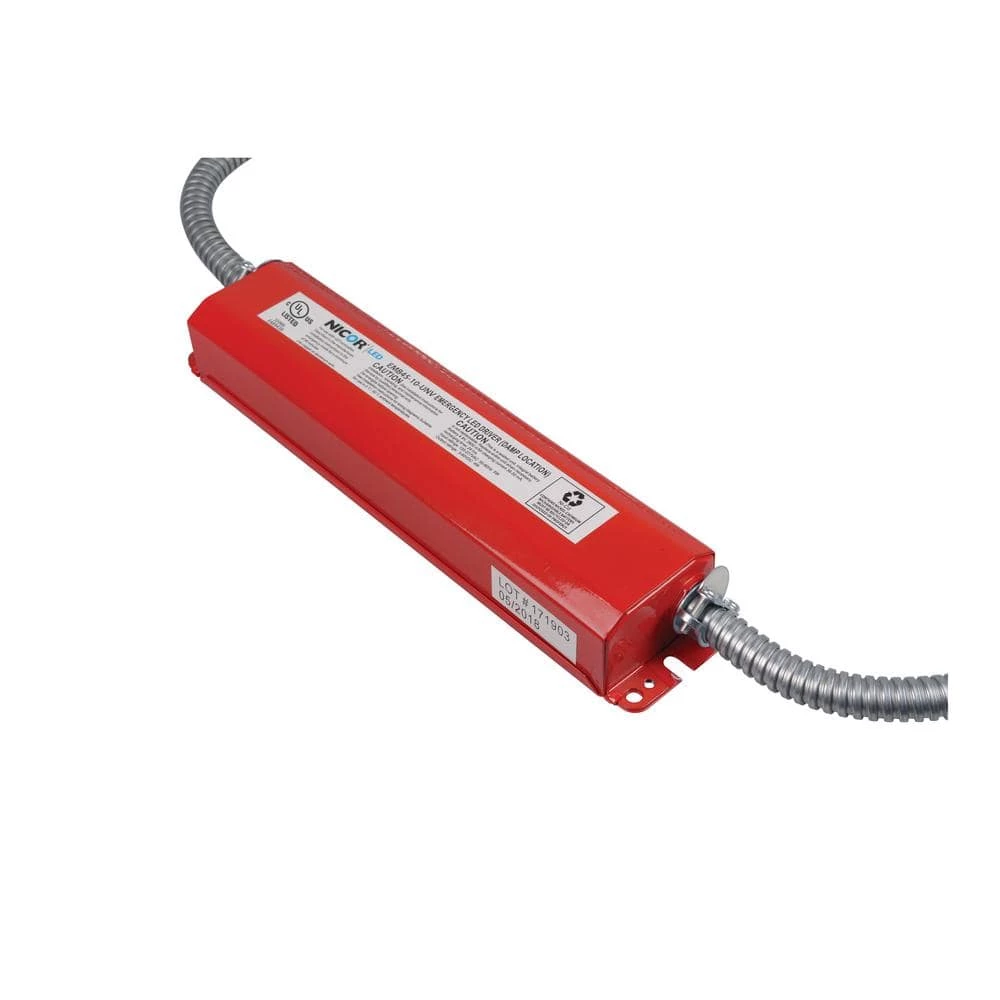

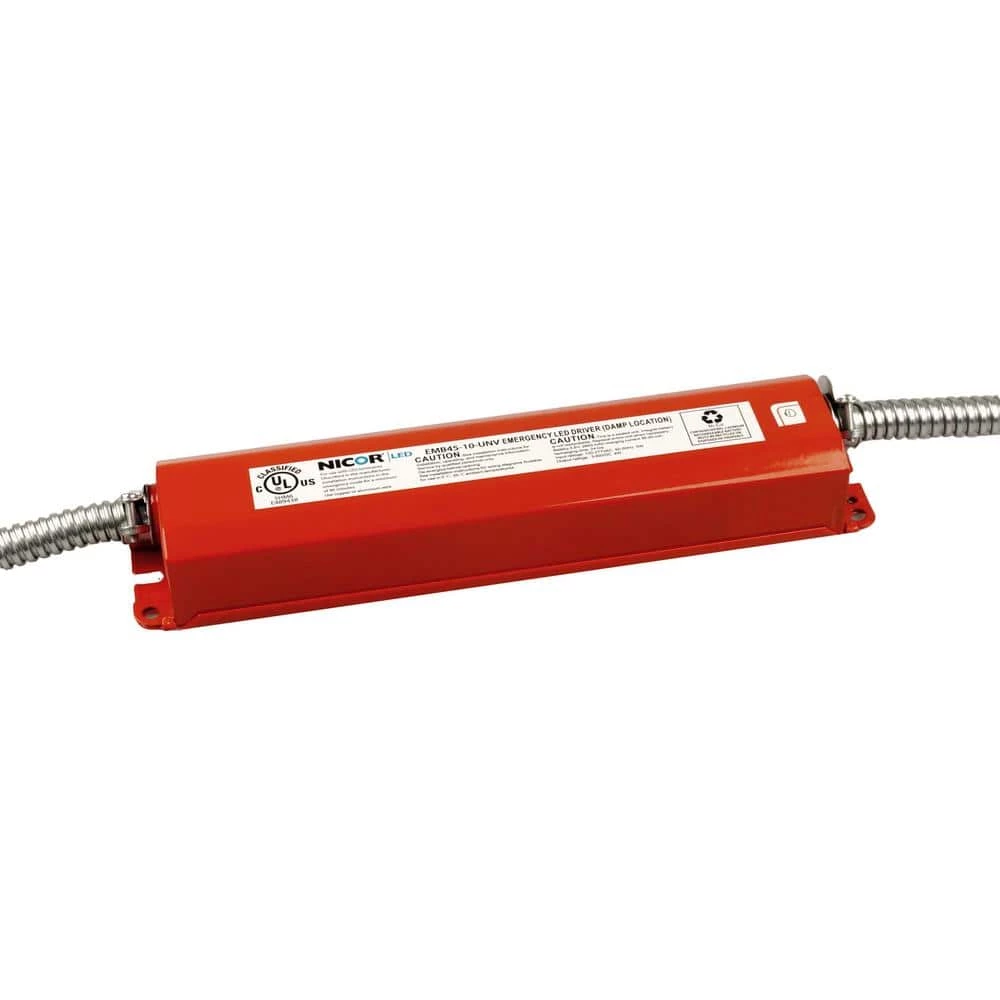

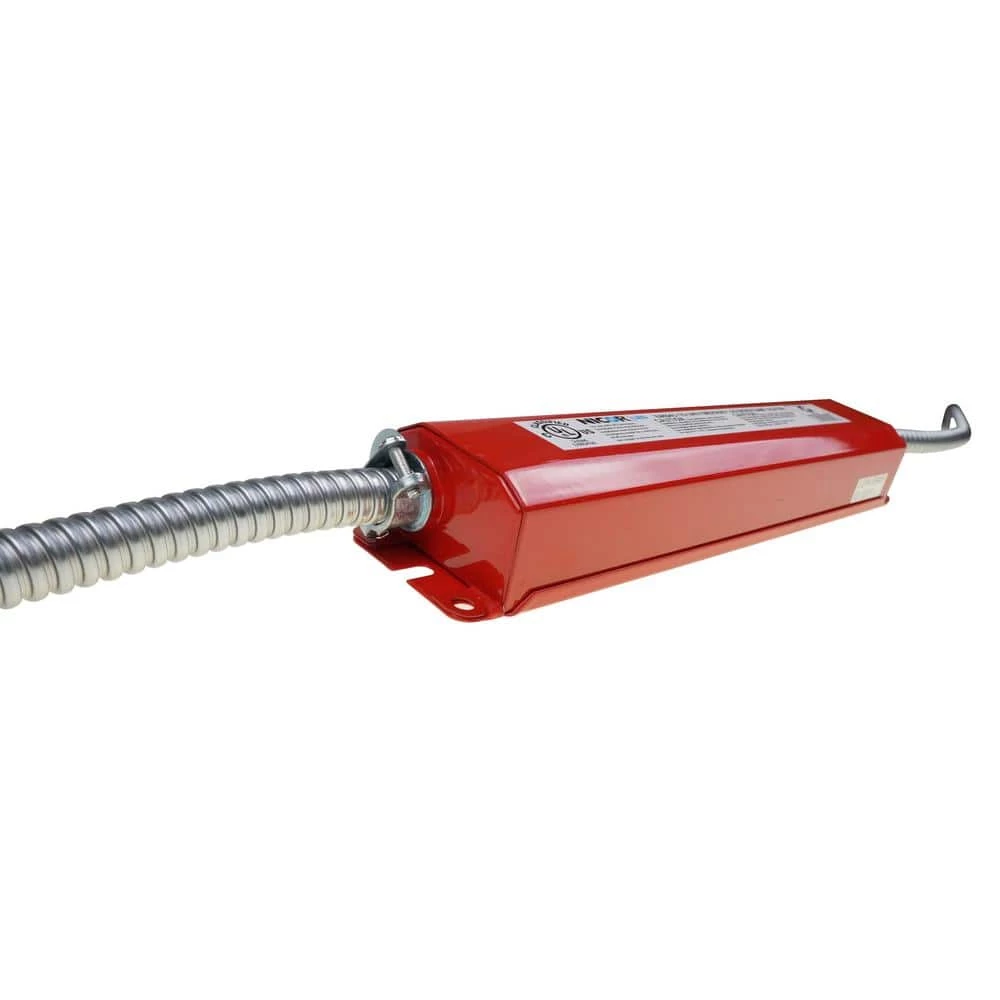

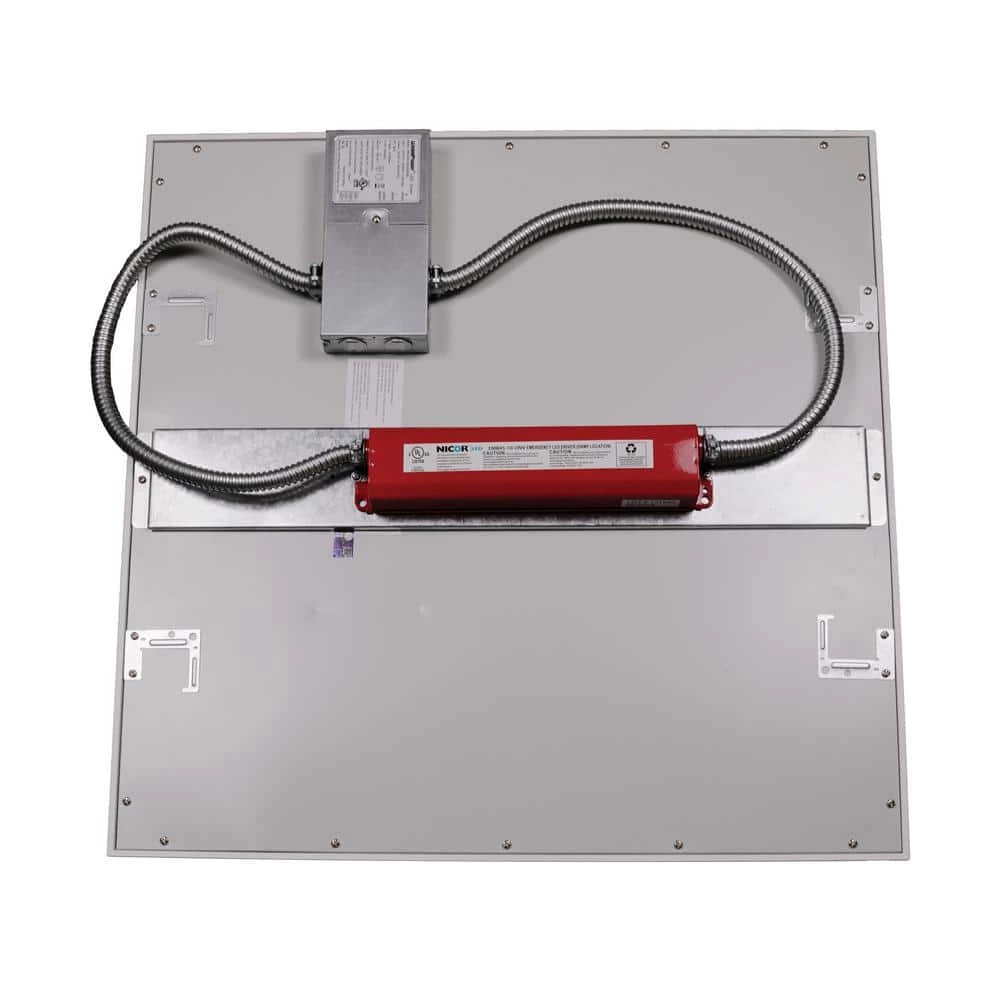

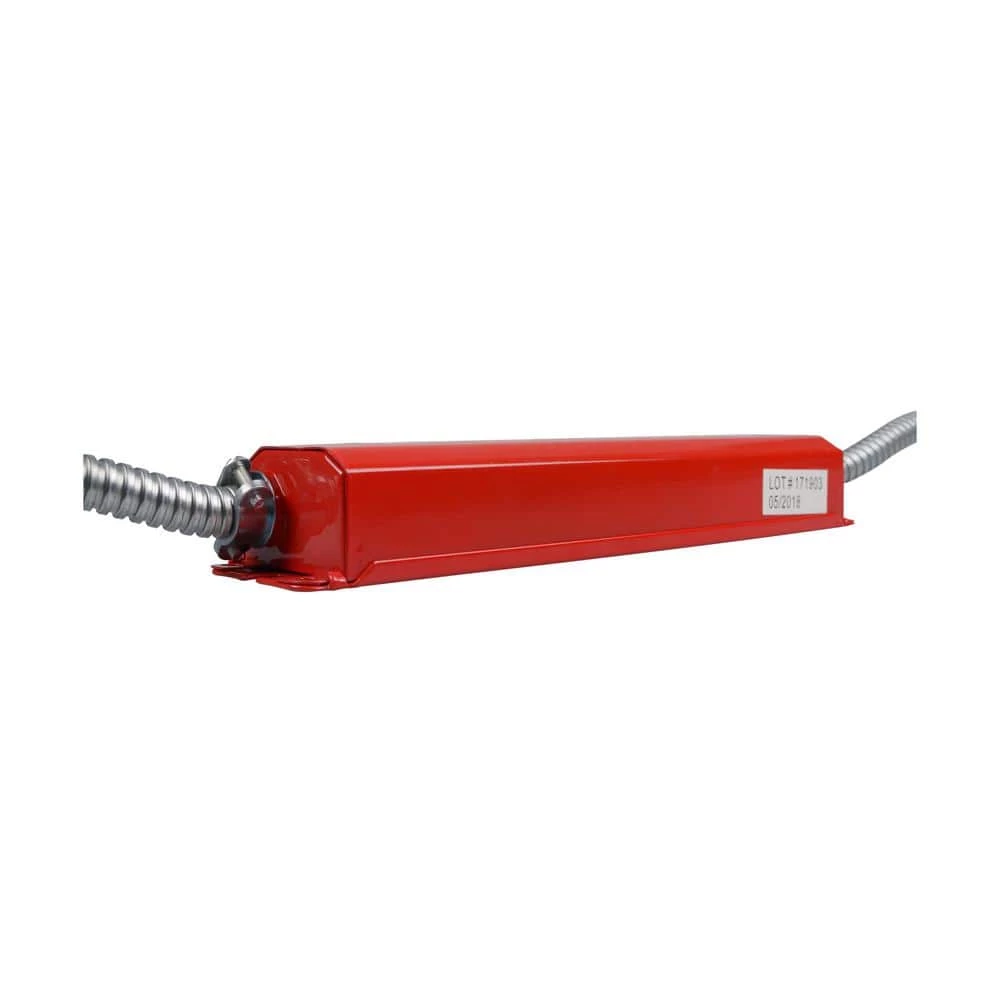

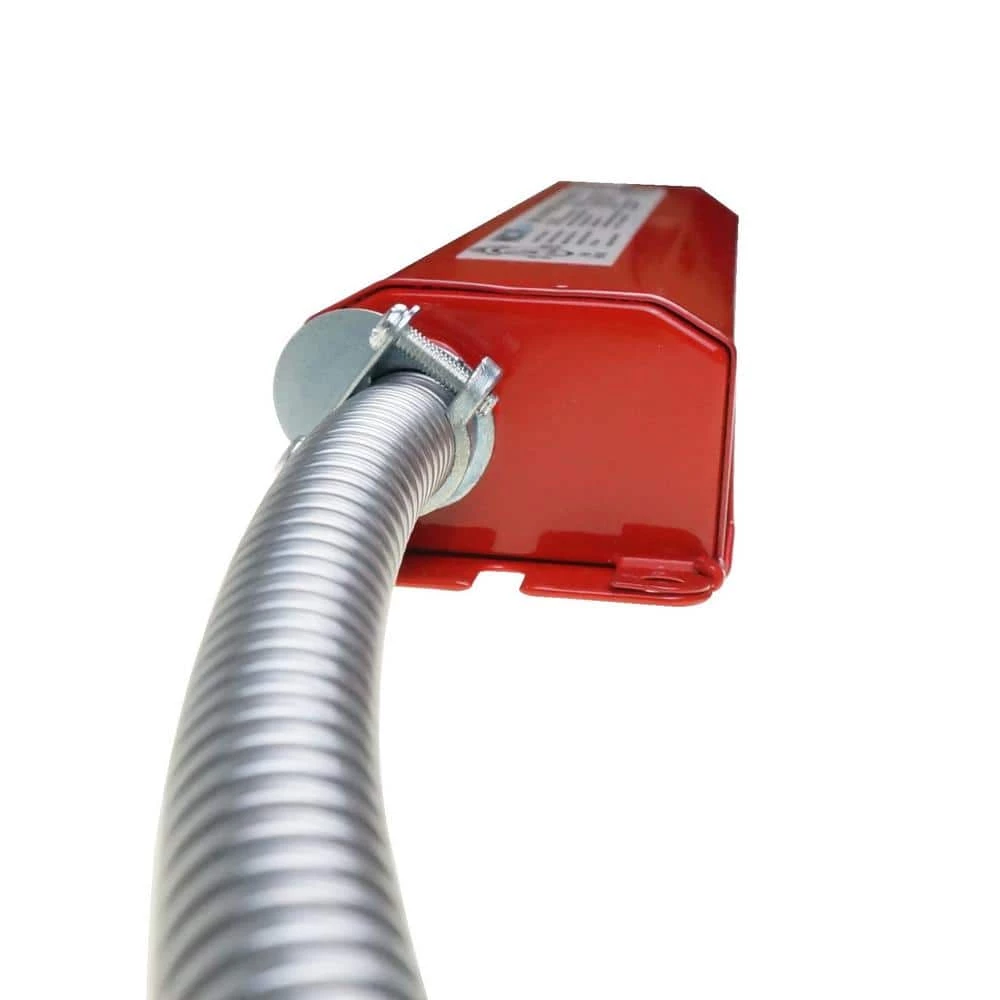

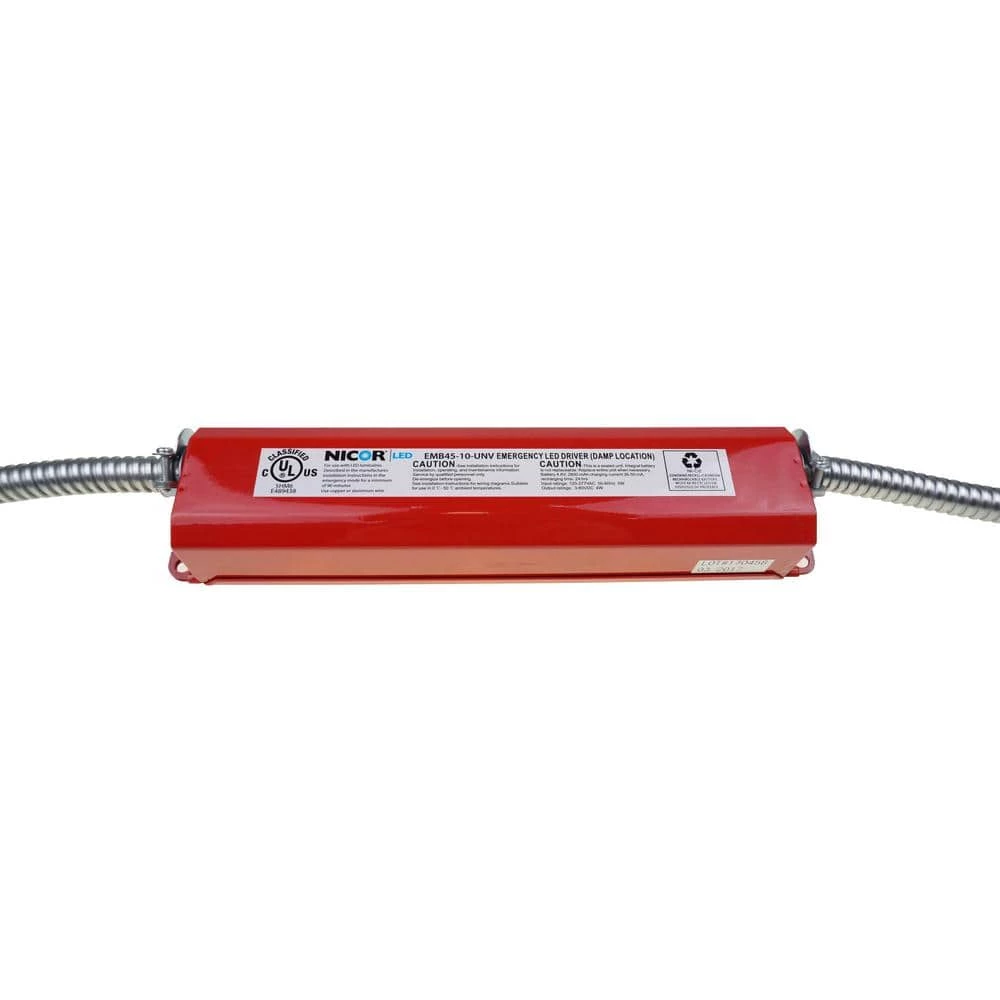

The NICOR EMB45 is an LED emergency driver designed for factory or field installations that enables normal and emergency operation of a switched or non-switched LED fixture. During a power failure, the EMB45 activates emergency mode to maintain consistent output wattage to the fixture without light degradation for a 90-minute duration. The EMB45 contains a 4.5-Volt, 2800 mAh Ni-Cad battery, charger, test switch, and converter circuit in a powder-coated steel finished housing. The EMB45 is protected by NICOR’s 3-year Limited Warranty.
- Rated for plenum, damp location, and IC rated fixtures
- Battery: 4.8-Volt 2800 mAh ni-cad
- Emergency mode: 90-minutes (minimum) @ 4.5-Watt
- Input voltage: 120~277-Volt AC (50/60 Hz)
- Charging current: 36-50 mA
- Input power: 5-Watt
- Output voltage: 3~60-Volt DC
- For use with NICOR’s emergency/exit product line
- Output power: 4.5-Watt
- Protected by NICOR’s 5-year limited warranty
