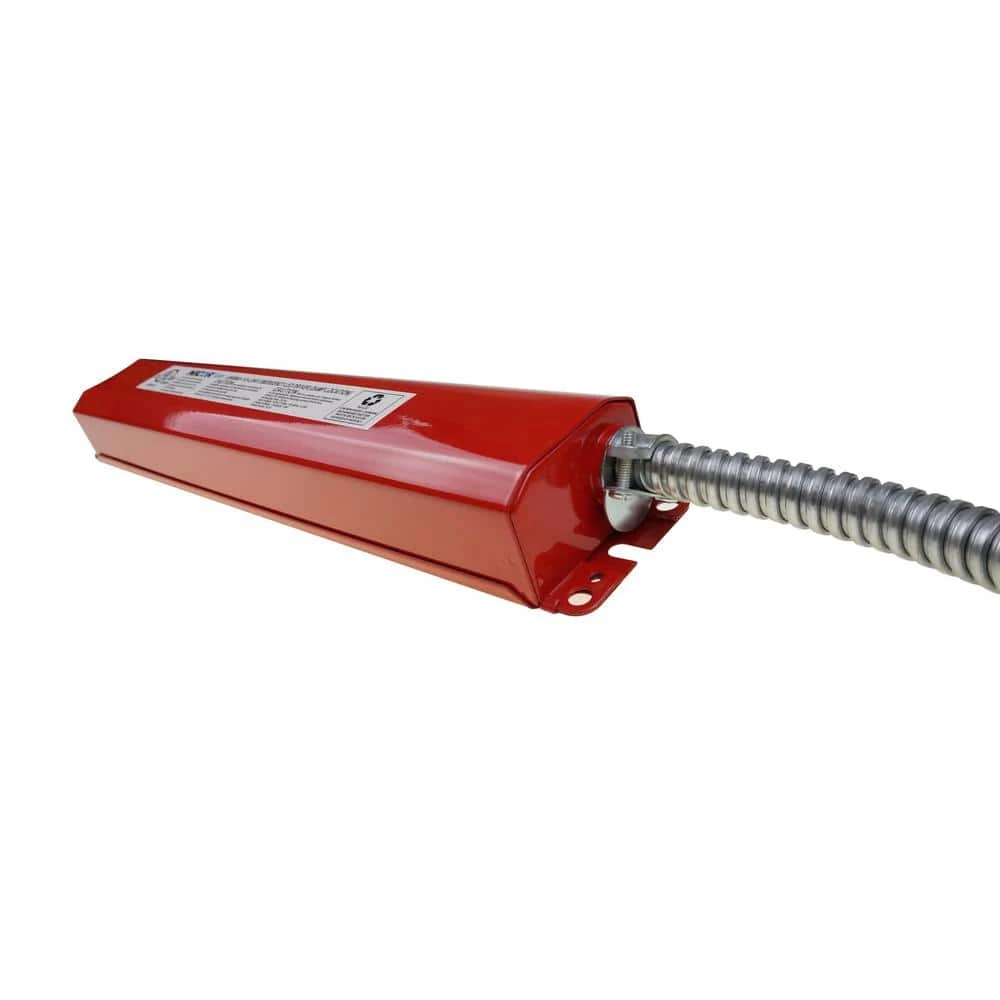

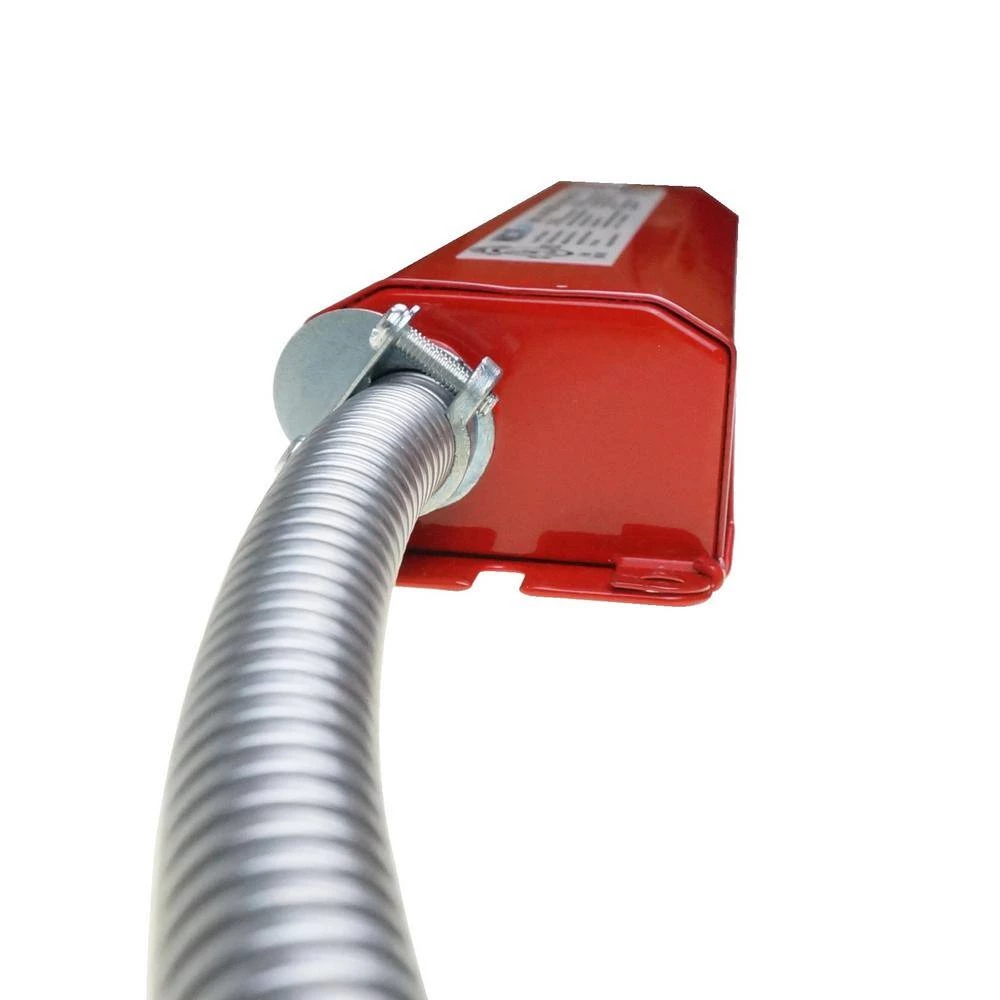

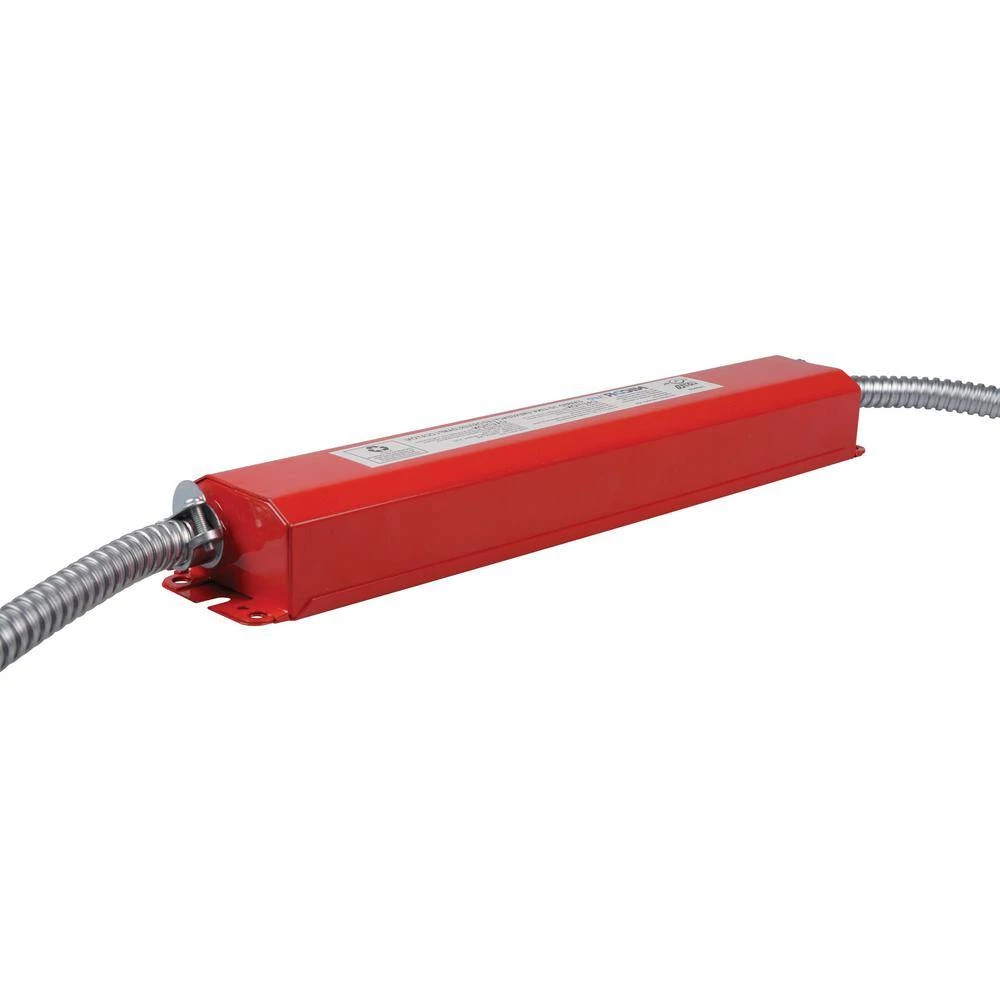

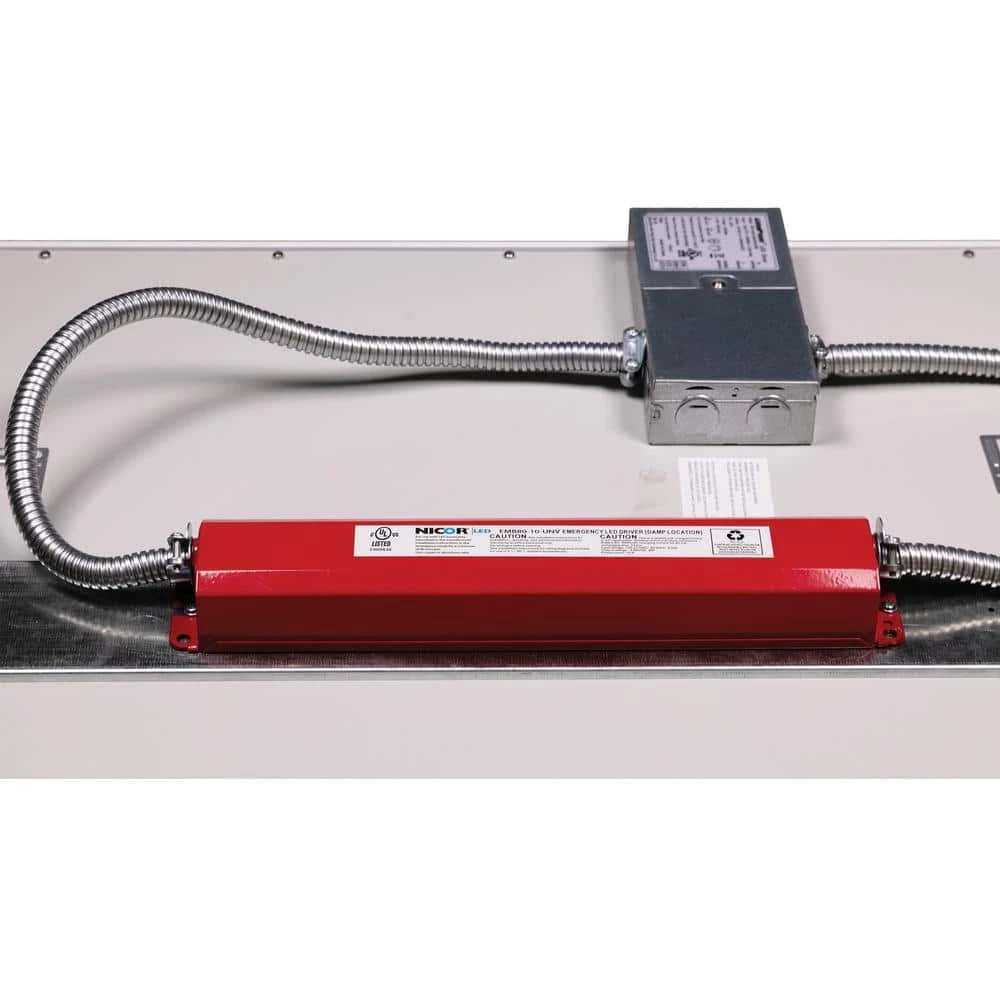

The NICOR EMB80 is an LED emergency driver designed for factory or field installations that enables normal and emergency operation of a switched or non-switched LED fixture. During a power failure, the EMB80 activates emergency mode to maintain consistent output wattage to the fixture without light degradation for a 90-minute duration. The EMB80 contains a 6-Volt, 4000mAh Ni-Cad battery, charger, test switch, and converter circuit in a powder-coated steel finished housing. Protected by NICOR’s 3 Year Limited Warranty.
- Rated for plenum, damp location and IC rated fixtures
- Battery: 6-Volt – 4000mAh Ni-Cad
- Emergency mode: 90-minutes (min.) at 8-Watt
- Input voltage: 120-Volt to 277-Volt AC (50/60 Hz)
- Charging current: 20-50 mA
- Input power: 5.5-Watt
- Output voltage: 3-Volt to 60-Volt DC
- For use with NICOR’s emergency/exit product line
- Output power: 8-Watt
- Protected by NICOR’s 5-year limited warranty
