The EXL2 Series LED Edge-Lit Exit Sign features a modern design, built with dependability in mind. The face is constructed using impact-resistant (mirrored) acrylic in a double-sided design. Bright LEDs illuminate the exit sign with exceptional light distribution and quality. The edge-lit design saves space and reduces weight, making installation that much easier (considering it’s usually done on a ladder). The EXL2 can be surface mounted from the top, back, or side of the base. Includes directional chevron arrows that can be added as needed. The EXL2 features an integrated nickel-cadmium battery to provide 90-minute emergency run-time if the power gets cut. Available in red or green lettering.
- Features a double sided exit sign configuration
- Maintenance-free NiCad battery provides 90-minute emergency operation
- 120/277VAC dual voltage operation, 60Hz input

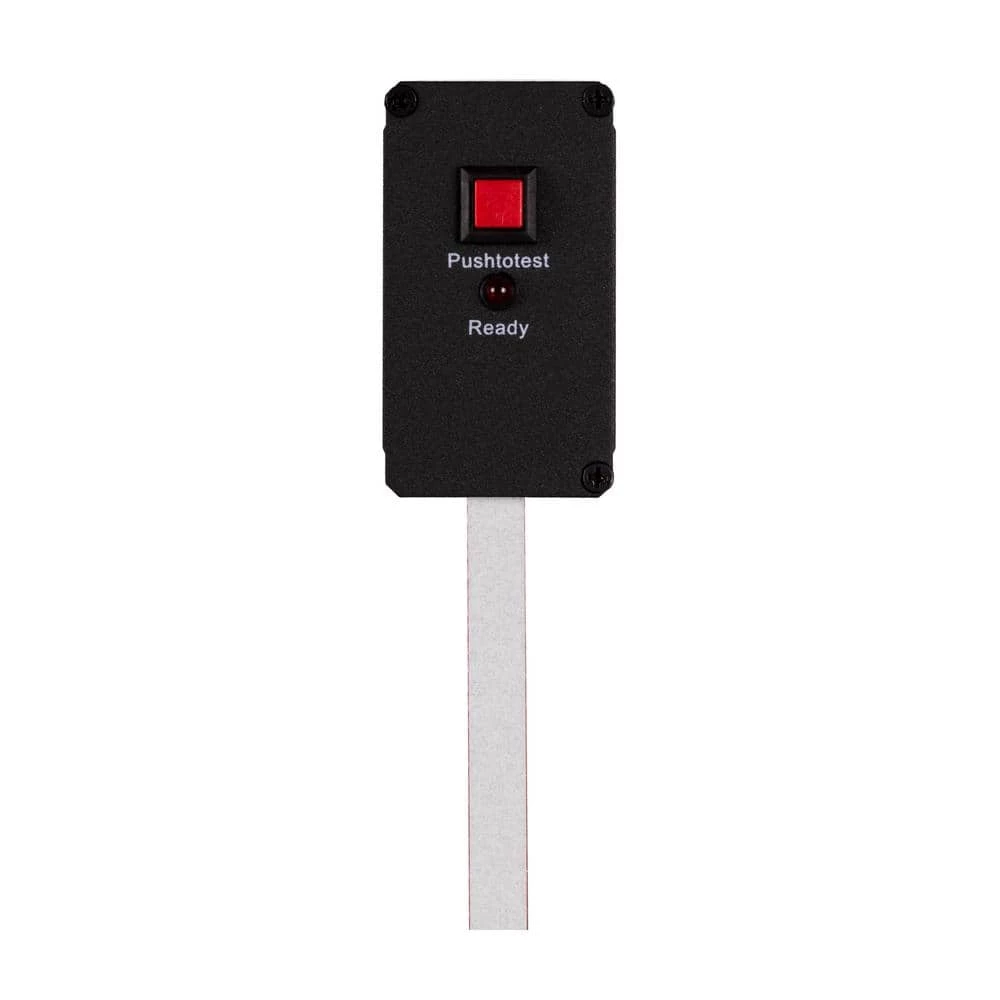

- Push button test switch with LED indicator
- 3.6-Volt Ni-Cad Emergency Battery 600mAh
- Specification grade aluminum extrusion design
- Mounting plate allows for surface ceiling, wall or end mount options
- Optional left and right arrow indicators included
- Low voltage disconnect eliminates deep discharge
- Brown-out, short circuit and voltage surge protection
- Protected by NICOR’s 1-year limited warranty
- UL listed to standard 924 (emergency lighting)
- NFPA 101 (Life Safety Code) compliant
- NFPA 70 (National Electrical Code) compliant
